- Place of Origin: China
- Brand Name: Manitowoc
- Model Number: Igo M 14

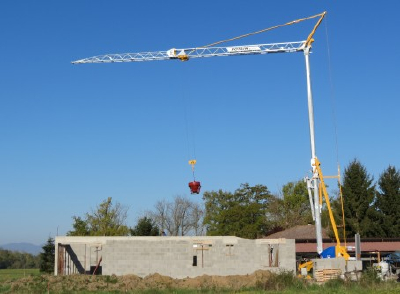

The new standard Igo M
Main features
19 m hook height ( 3 m)
1800 kg maximum load
22 m maximum jib radius
600 kg load at jib noise
Key Advantages
1- Easy and Fast erection
Generator embedded with remote start
Fast erection with permanent ballasts
Hydraulic leveling
Improved erection check
2- High jobsite accessibility
Large manoeuvrability with the steering chassis
Variable ballast radius
Steering axles /- 20°
3- Performance in operation
19 m hook height, 1.8 maximum load, 600 kg @ 22m
Strong load curve
Multiple jib positions : raised (2 positions) and folded jib
4- Versatility
2 energy options for : 230 v or 400 v
Adjustable Tow bar or 5th wheel
5- Transport
Availability in 25 km/h or 80 km/h
- Place of Origin: China
- Brand Name: Manitowoc
- Model Number: Igo M 14
Simple and rapid, the IgoM and HDM cranes are transported ballasted, in a single trailer train, reducing time for operations of putting into service.
| Model | Max Capacity | Maximum Radius | Maximum Tip Capacity | Hook Height per Base |
|---|---|---|---|---|
Igo M 14 | 1.8 t (2 USt) | 22 m (72.2 ft) | 0.6 t (0.7 USt) | 19 m (62.3 ft) |
Igo MA 21 | 1.8 t (2 USt) | 26 m (85.3 ft) | 0.7 t (0.8 USt) | 19.3 m (63.3 ft) |
Key Advantages
1- Easy and Fast erection
Generator embedded with remote start
Fast erection with permanent ballasts
Hydraulic leveling
Improved erection check
2- High jobsite accessibility
Large manoeuvrability with the steering chassis
Variable ballast radius
Steering axles /- 20°
3- Performance in operation
19 m hook height, 1.8 maximum load, 600 kg @ 22m
Strong load curve
Multiple jib positions : raised (2 positions) and folded jib
4- Versatility
2 energy options for : 230 v or 400 v
Adjustable Tow bar or 5th wheel
5- Transport
Availability in 25 km/h or 80 km/h
