- Place of Origin: China
- Brand Name: Manitowoc
- Model Number: MCT 205
Potain, the world leader of the tower crane now sells a range of models perfectly adapted to each type of construction. These products are based on the latest technologies and are associated with a complete set of equipment.

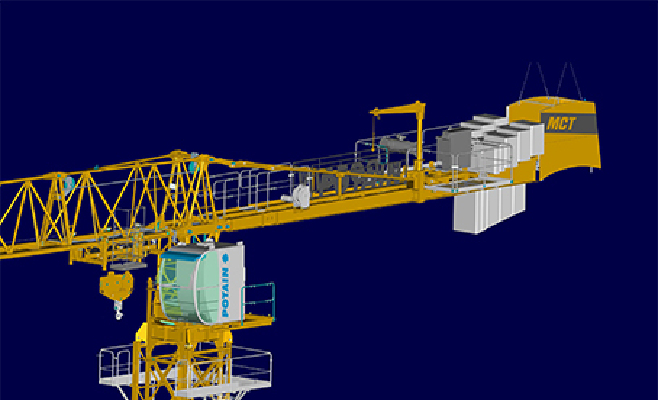

The MCT 205 is the new topless version that replaces the previous MC 205B. Maximum working radius has been increased to 65m. Hoisting mechanisms for this crane are all variable frequency type.
Features
Easier and faster to erect than the previous hammerhead model.
Better for overlapping operations.
Better maximum working radius, than previous model, at 65m.
Variable frequency hoisting mechanisms.
Available on 1.6m and 2m masts.
Option for internal floor climbing is available on both 1.6m and 2m masts.
- Place of Origin: China
- Brand Name: Manitowoc
- Model Number: MCT 205
Potain, the world leader of the tower crane now sells a range of models perfectly adapted to each type of construction. These products are based on the latest technologies and are associated with a complete set of equipment.
| Model | Max Capacity | Maximum Radius | Maximum Tip Capacity | Hook Height per Base |
|---|---|---|---|---|
MCT 85 F2.5 | 2.5 t (2.8 USt) | 52 m (170.6 ft) | 1.15 t (1.3 USt) | 35.2 m (115.5 ft) |
MCT 85 F5 | 5 t (5.5 USt) | 52 m (170.6 ft) | 1.1 t (1.2 USt) | 35.2 (115.5 ft) |
MC 125 | 6 t (6.6 USt) | 60 m (196.9 ft) | 1.15 t (1.3 USt) | 41.9 m (137.5 ft) |
MC 175C | 8 t (8.8 USt) | 60 m (196.9 ft) | 1.5 t (1.7 USt) | 63.9 m (209.6 ft) |
MCT 205 | 10 t (11 USt) | 65 m (213.3 ft) | 1.75 t (1.9 USt) | 64.4 m (211.3 ft) |
MC 235C | 10 t (11 USt) | 65 m (213.3 ft) | 2.2 t (2.4 USt) | 64.7 m (212.3 ft) |
MC 310 K12 | 12 t (13.2 USt) | 70 m (229.7 ft) | 3.2 t (3.5 USt) | 62.6 m (205.4 ft) |
MC 310 K16 | 16 t (17.6 USt) | 70 m (229.7 ft) | 2.7 t (3 USt) | 61.9 m (203.1 ft) |
MCT 385 L14 | 14 t (15.4 USt) | 75 m (246.1 ft) | 3.2 t (3.5 USt) | 63.7 m (209 ft) |
MCT 385 | 20 t (22 USt) | 75 m (246.1 ft) | 2.7 t (3 USt) | 63.3 m (207.7 ft) |
MC 465 | 25 t (27.6 USt) | 80 m (262.5 ft) | 3 t (3.3 USt) | 50.4 m (165.4 ft) |
MC 475 | 25 t (27.6 USt) | 80 m (262.5 ft) | 3 t (3.3 USt) | 76.11 m (249.7 ft) |
MCR 160 | 10 t (11 USt) | 50 m (164 ft) | 2.4 t (2.6 USt) | 49.4 m (162.1 ft) |
MCR 225A | 14 t (15.4 USt) | 55 m (180.4 ft) | 2.15 t (2.4 USt) | 52.4 m (171.9 ft) |
MR 295 P22A | 20 t (22 USt) | 60 m (196.9 ft) | 2.7 t (3 USt) | 47.6 m (156.2 ft) |
